VACUUM ELECTRON BEAM WELDING

Vacuum electron beam welding is widely used in many industries such as semiconductors, optoelectronics, aerospace, and automobiles due to its advantages of not requiring filler, less of oxidization, good process repeatability, and less thermal deformation.

RonJye electron beam welding equipment working size:

EBW_1: Long.Width.Height = 3000.1000.550mm.

EBW_2: Long.Width.Height = 1350.1000.2500mm.

Minimum vacuum welding pressure: 1.6x10^-5 bar.

Maximum welding depth of common industrial metals:

Aluminum -- 60mm,

Titanium -- 40mm,

Stainless Steel -- 40mm.

~ No copper EBW process in RonJye ~

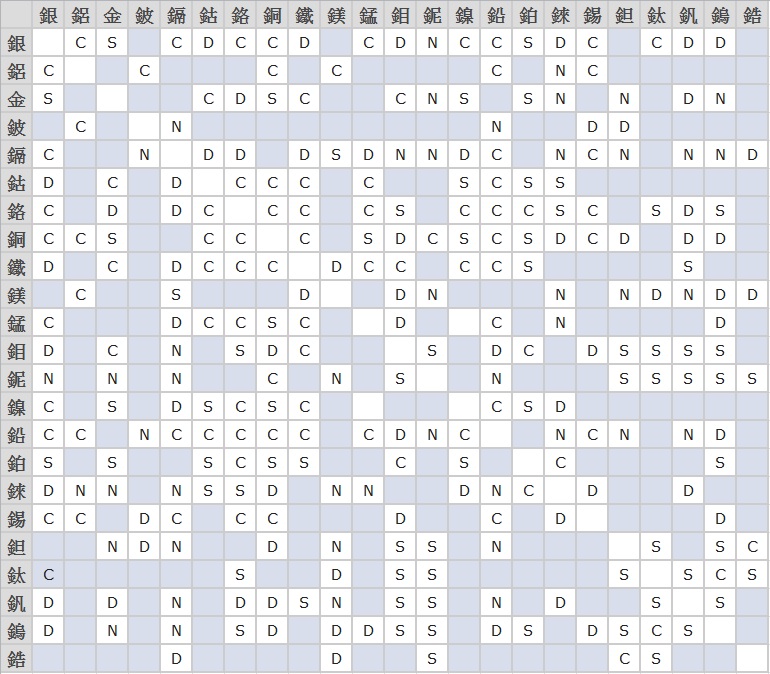

Suitability of other metals for electron beam welding:

Table description :

Empty	:	Intermetallic compounds formed - a bad combination.
D	:	Insufficient data for evaluation - use for evaluation.
N	:	No data available.
S	:	Solid solubility in all alloy combinations - highly desirable combinations.
C	:	Complex structures may exist - may be acceptable combinations.
